Impact Idlers

Pioneer Conveyor regularly produces a variety of impact structure and idlers to suite our customer's needs. Listed below are some of our impact structure options.

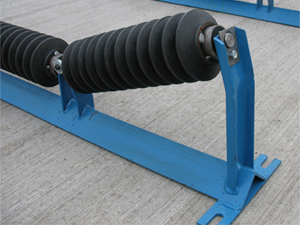

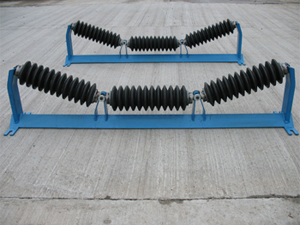

Pioneer Conveyor - Impact StructurePioneer Conveyor - Impact StructurePioneer Conveyor - Impact Structure

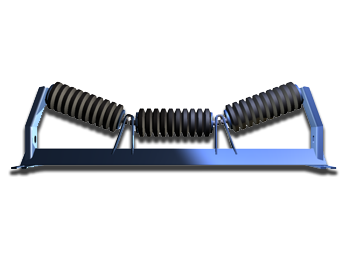

Standard 35 Degree Impact Tops with 5" Impact Idlers

Call for availability and pricing: 301.334.8186 or contact us here

Pioneer Conveyor Impact Tops

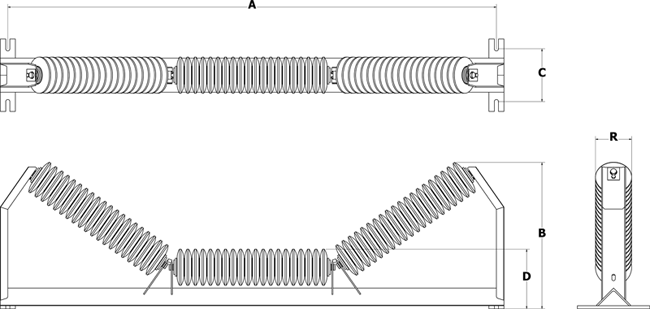

35 Bolt Down Impact Tops - 5"
Belt WidthDim ADim BDim CDim DDim R
18 27 12.2813 5.75 8.3125 5
24 33 13.625 5.75 8.3125 5
30 39 14.5 5.75 8.3125 5
36 45 15.9375 5.75 8.3125 5
42 51 17.0625 7.5 8.3125 5
48 57 18.25 7.5 8.3125 5
54 63 20.25 9 8.3125 5
60 69 20.5 9 8.3125 5
