Conveyor Belt

Standard In-stock Surface Belt

Pioneer Conveyor stocks an assortment of conveyor belts of all sizes and varieties for surface mining applications.
2 PLY - 220 PIW
Belt WidthBelt PlyBelt PIWCovers
18 2 220 0.1875 x 0.0625
24 2 220 0.1875 x 0.0625
30 2 220 0.1875 x 0.0625
36 2 220 0.1875 x 0.0625
42 2 220 0.1875 x 0.0625
48 2 220 0.1875 x 0.0625
3 PLY - 330 PIW
Belt WidthBelt PlyBelt PIWCovers
24 3 330 0.1875 x 0.0625
30 3 330 0.1875 x 0.0625
36 3 330 0.1875 x 0.0625
42 3 330 0.1875 x 0.0625
48 3 330 0.1875 x 0.0625
54 3 330 0.1875 x 0.0625
60 3 330 0.1875 x 0.0625
24 3 330 0.25 x 0.0625
30 3 330 0.25 x 0.0625
36 3 330 0.25 x 0.0625
42 3 330 0.25 x 0.0625
48 3 330 0.25 x 0.0625
54 3 330 0.25 x 0.0625
60 3 330 0.25 x 0.0625
36 3 600 0.25 x 0.0625
42 3 600 0.25 x 0.0625
48 3 600 0.25 x 0.0625
54 3 600 0.25 x 0.0625
60 3 600 0.25 x 0.0625
4 PLY - 440 PIW
Belt WidthBelt PlyBelt PIWCovers
30 4 440 0.25 x 0.0625
36 4 440 0.25 x 0.0625
42 4 440 0.25 x 0.0625
48 4 440 0.25 x 0.0625
54 4 440 0.25 x 0.0625
60 4 440 0.25 x 0.0625

MSHA Aprroved Under 30 C.F.R. Part 14

30 Code of Federal Regulations, Part 14 requires mining operations to deploy MSHA approved flame resistant belt. To help our customers remain in compliance and safe Pioneer Conveyor carries a selection of MSHA approved belt developed with enhances compounds and textiles, and tested under MSHA correlated procedures. You can review the Federal Regulations from the Department of Labor by clicking here

MSHA Belt Spec Part 14 Options
CompoundCarcassCovers
#34 2 / 400 3/16" x 1/16"
#34 2 / 500 3/16" x 1/16"
#34 3 / 600 3/16" x 1/16"
#34 3 / 750 3/16" x 1/16"
#34 4 / 500 3/16" x 1/16"
#34 4 / 800 3/16" x 1/16"
#34 4 / 1000 3/16" x 1/16"
#34 5 / 1000 3/16" x 1/16"
#34 5 / 1250 3/16" x 1/16"

Chevron Cleated Belt - Two and Three Ply

To suit a variety of bulk material transfer Pioneer Conveyor can provide different types of integrally molded Chevron Cleated Belting. Applications include steep angle conveying, wet materials that need to allow water to escape during time of transport, grains, sands, bark, wood chips and other aggregates.

Cleated Belt Options
Belt WidthBelt PlyBelt PIWCovers
24 2 - -
30 2 - -
36 2 - -
42 2 - -
48 2 - -
54 2 - -
60 2 - -
24 3 - -
30 3 - -
36 3 - -
42 3 - -
48 3 - -
54 3 - -
60 3 - -

Belt Services

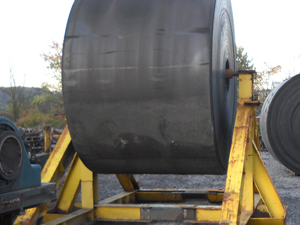

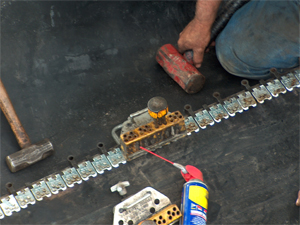

Along with a selection of conveyor belts Pioneer Conveyor belt specific services such as: onsite belt winding, rewinding and splicing and belt vulcanizing.

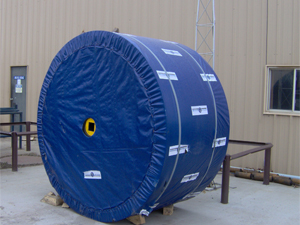

Pioneer Conveyor - Belt ServicesPioneer Conveyor - New BeltPioneer Conveyor - Belt Services
